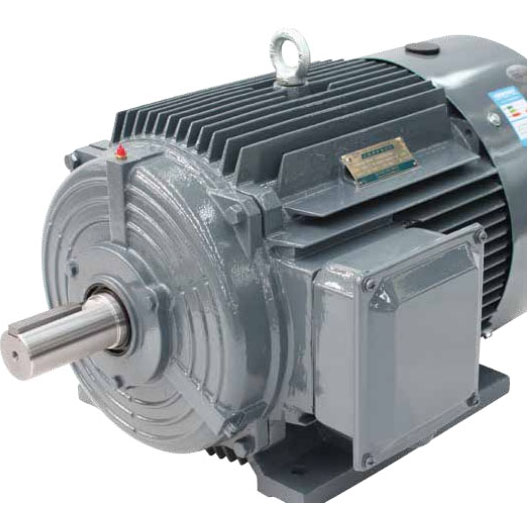

1TL0 Cast Iron series Low-voltage Three-phase Asynchronous Motor
Introduction
1TL0 series of motors is the newly designed high efficiency low voltage three phase asynchronous motor, the housing material have two options, cast iron or aluminum1), is designed for continuous duty operation(S1). 1TL0 series of motors owns the features of high efficiency, novel structure, beautiful appearance, low noise, small vibration, high degree of insulation, etc, also can be used in the fields of fans, pump, compressors and textile machine.
By adopting the 1TL0 series of motors, customer can save energy up to 10%, which contributes to upgrading the status of the industry and enhancing the competitive power of the products.
- Rated output：0.55 ~ 315 kW
- Frame size：80 ~ 355
- Voltage and Frequency：support multiple voltage and frequency
- Cooling method：IC411
- Oiling device：FS180~355 motor as standard
- Degree of protection：IP55
- Degree of insulation：F
- Coolant temperature：-15 ~ 40 ºC
- Site altitude above see level：not exceed 1000 m
