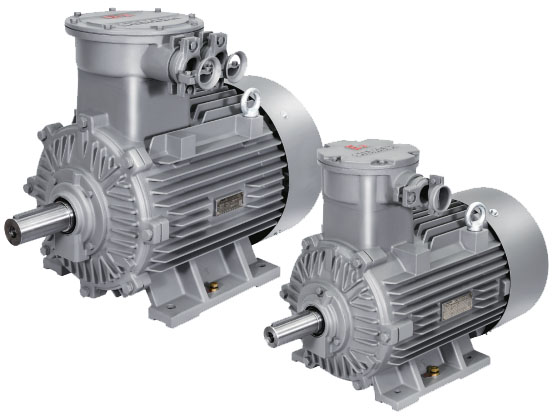

1MB0063 Low-Voltage Flameproof Motor
SIMOTICS XP 1MB0063 series flameproof motors is Siemens newly designed totally enclosed fan cooling (TEFC) high efficiency motor. This series flameproof motor completely meet the standard of
IEC 60079- 0:2017/IEC 60079-1:2017 and GB 3836.1-2010/GB
3836.2-2010. The type of protection for this motor is Ex d IIB T4 Gb. And its efficiency fulfill efficiency grade IE3 of IEC 60034-30, and also Grade 2 efficiency of GB 18613-2012.
This motor inherits Siemens hundred years design technology, the production equipment of this series adopt advanced CNC machine tools, based on Siemens advanced insulation structure design and manufacturing process, use high quality cold-rolled silicon steel sheets and high quality parts with strict quality control. This series products have excellent performance, safe and reliable to use, simple and flexible installation, easy to maintain, low vibration, low noise.
SIMOTICS XP 1MB0063 series high-efficiency flameproof motors can be widely used in petroleum, chemical industry, oil and gas and other hazardous areas and places.These motors are designed such that an explosion within the housing cannot result in an explosion in the environment. The energy that is generated internally by an explosion is dissipated in the so-called “flameproof enclosure” so far that the energy is no longer sufficient for ignition outside the casing.
- Rated output：0.55 ~ 315 kW
- Frame size：80 ~ 355 Voltage and Frequency：380V 50Hz 380/660V 50Hz, Other common voltage can be provide as option design
- Standard color：stone grey（RAL7030）
- Cooling method：IC411
- Frame-proof marking：Ex d IIB T4 Gb
- Protect degree：IP55
- Insulation class：F
- Re-greasing device：FS 280 ~ 355 motor as standard ,FS 160 ~ 250 motor as option design
- Ambient temperature：-20ºC ~ +40ºC as standard, max. ambient temperature can be designed to +60ºC as option
