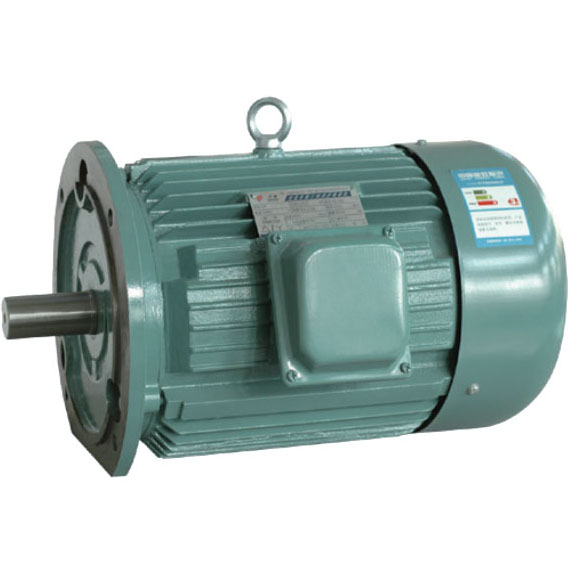

YD Series Change-Poles Multi-Speed Asynchronous Motors

Introduction

YD series pole-changing multi-speed three-phase asynchronous motors can apply to various transmission mechanism which need control speed step by step.



Mounting type

Diagram
Mounting type（IM） B3 B5 B35 V1 V3 V5 V6 B6 B7 B8 V15 V36
机座号 Motor size 80 ~ 280 80 ~ 225 80 ~ 280 80 ~ 280 80 ~ 160



Specification table

Type Synchronous speed（r/min）
1500/3000 1000/1500 750/1500 500/1000
poles
4/2 6/4 8/4 12/6
功率 Power（kW）
YD801 0.45/0.55
YD802 0.55/0.75
YD90S 0.85/1.1 0.65/0.85
YD90L 1.3/1.8 0.85/1.1 0.45/0.75
YD100L1 2/2.4 1.3/1.8 0.85/1.5
YD100L2 2.4/3 1.5/2.2
YD112M 3.3/4 2.2/2.8 1.5/2.4
YD132S 4.5/5.5 3/4 2.2/3.3
YD132M1 6.5/8 4/5.5 3/4.5
YD132M2
YD160M 9/11 6.5/8 5/7.5 2.6/5
YD160L 11/14 9/11 7/11 3.7/7
YD180M 15/18.5 11/14
YD180L 18.5/22 13/16 11/17 5.5/10
YD200L1 26/30 18.5/22 14/22 7.5/13
YD200L2 17/26 9/15
YD225S 32/37 22/28
YD225M 37/45 26/32 24/34 12/20
YD250M 45/52 32/42 30/42 15/24
YD280S 42/55 40/55 20/30
YD280M 55/67 47/67 24/37



Dimensions of mounting and Outline

    Note:
  1. The drawing is B35 type. There have housing feet and flange on end shield.
  2. B3 type motors have frame feet but no flange, the dimensions have no M、N、P、R、S、T。
  3. B5 type motors have flange but no frame feet, the dimensions have no A、B、C、AB。
  4. There are eight symmetrical distributed holes for flange mounting on the FS225~ 355 motors.
  5. R is the distance from the flange to the drive shaft end.
Motor size Mounting Dimensions（mm） Outline Dimensions（mm）
H A B C D E F G K M N P R S T AB AC AD HD L
80 80 125 100 50 19 40 6 15.5 10 165 130 200 0 12 3.5 165 175 150 175 290
90S 90 140 100 56 24 50 8 20 10 165 130 200 0 12 3.5 180 195 160 195 315
90L 90 140 125 56 24 50 8 20 10 165 130 200 0 12 3.5 180 195 160 195 340
100L 100 160 140 63 28 60 8 24 12 215 180 250 0 15 4 205 215 180 245 380
112M 112 190 140 70 28 60 8 24 12 215 180 250 0 15 4 245 240 190 265 400
132S 132 216 140 89 38 80 10 33 12 265 230 300 0 15 4 280 275 210 315 475
132M 132 216 178 89 38 80 10 33 12 265 230 300 0 15 4 280 275 210 315 515
160M 160 254 210 108 42 110 12 37 15 300 250 350 0 19 5 330 335 265 385 610
160L 160 254 254 108 42 110 12 37 15 300 250 350 0 19 5 330 335 265 385 655
180M 180 279 241 121 48 110 14 42.5 15 300 250 350 0 19 5 355 380 285 430 670
180L 180 279 279 121 48 110 14 42.5 15 300 250 350 0 19 5 355 380 285 430 710
200L 200 318 305 133 55 110 16 49 19 350 300 400 0 19 5 395 420 315 475 775
225S 225 356 286 149 60 140 18 53 19 400 350 450 0 19 5 435 475 345 530 820
225M 225 356 311 149 60 140 18 53 19 400 350 450 0 19 5 435 475 345 530 845
250M 250 406 349 168 65 140 18 58 24 500 450 550 0 19 5 490 515 385 575 930
280S 280 457 368 190 75 140 20 67.5 24 500 450 550 0 19 5 550 585 410 640 1000
280M 280 457 419 190 75 140 20 67.5 24 500 450 550 0 19 5 550 585 410 640 1050
